Custom Gabion Structure DesignDurable, Site-Specific Solutions Built for South African Conditions
Gabion structures are one of the most practical and long-lasting solutions for retaining walls, erosion control, slope stabilisation, and riverbank protection. They’re strong, naturally draining, and work exceptionally well in harsh outdoor conditions.
But not every site is the same.
Soil type, rainfall intensity, stormwater flow, slope angle, and loading requirements can differ massively from one property to the next. That’s why a “standard” gabion wall design isn’t always the best approach—especially on challenging sites.
Custom gabion structure design ensures your gabion solution is engineered around your site conditions, your risks, and your project goals.
At Civil Structural & Eco-Engineering, we provide professional custom gabion structure design services across South Africa, helping clients build solutions that are safe, functional, and built to last.
What Is Custom Gabion Structure Design?
Custom gabion structure design is the process of planning and engineering gabion systems that are tailored to a specific site—rather than using generic basket layouts or “rule-of-thumb” construction.
A custom design considers factors like:
Custom gabion design can apply to both simple structures (like garden retaining walls) and major civil engineering works.
Why Custom Gabion Structures Matter?
(And Why “One-Size-Fits-All” Fails)
Gabions are often seen as a simple solution—mesh baskets + rock = retaining wall.
In reality, gabion structures must resist:
- Soil pressure
- Water pressure and runoff forces
- Settlement and movement over time
- Flood events (in certain areas)
- Scour at the base of walls and banks
A structure that isn’t designed correctly can lead to:
- Bulging baskets
- Leaning or collapse
- Undermining at the toe
- Washouts behind or beneath the wall
- Expensive repairs and rebuild costs
A custom gabion structure design reduces risk and improves performance from day one.
Where Custom Gabion Structure Design Is Used?
Custom gabion design is ideal for projects where the site has unusual conditions or higher performance requirements.
Gabion Retaining Walls for Sloped Sites
Custom gabion retaining walls are often used to create stable platforms on steep properties.
Common applications include:
- Residential stands with steep fall
- Parking areas and driveways
- Building platforms and boundary edges
- Commercial developments on uneven terrain
Drainage Channels and Culvert Outlets
Fast water destroys soil and undermines structures, especially at discharge points.
Custom gabion structure design is effective for:
- Channel lining
- Outlet protection and energy dissipation
- Scour prevention around pipes and culverts

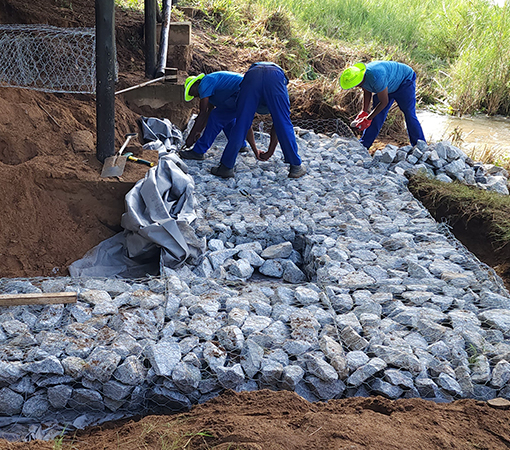

Riverbank Protection and Stream Stabilisation
Watercourse conditions change quickly and can destroy weak or poorly planned structures.
Custom riverbank gabion designs may include:
- Reno mattresses for lining
- Toe protection for scouring
- Stepped gabion walls for bank stability
- Flow deflection features for bends
Architectural and Landscaping Gabion Features
Gabions are also popular for modern design because they look natural and clean.
Custom structures can include:
- Entrance statement walls
- Seating and planters
- Boundary feature walls
- Terraced garden systems
Erosion Control Structures
Erosion problems can vary widely depending on runoff speed, soil type, and slope.
Custom gabion solutions can be designed for:
- Washaways and gullies
- Stormwater runoff lines
- Roadside erosion
- Agricultural and rural access routes
Key Elements of a Custom Gabion Structure Design
A proper custom design is built around real measurements, real conditions, and long-term performance—not assumptions.
Site Assessment and Consultation
Every successful gabion design starts with understanding the site, including:
- Where the problem is happening
- Why erosion or movement is occurring
- How water flows across the property
- What the soil conditions look like
- Where the structure will carry load or support ground
This stage prevents design mistakes that lead to failures later.
Basket Type, Mesh Specification, and Durability
Your site conditions determine the best type of basket system.
A custom design will specify:
- Basket sizes (length, width, height)
- Mesh type (woven or welded)
- Wire protection type (galvanised or PVC-coated)
- Internal bracing requirements
- Correct joining and lacing methods
For wet or aggressive environments, corrosion resistance becomes especially important.
Drainage and Stormwater Planning
In South Africa, heavy rain events and poor stormwater control are major causes of erosion and retaining wall failure.
A custom design considers:
- Surface runoff direction
- Collection points and concentrated flow
- Water buildup behind retaining structures
- Safe discharge routes away from walls
- Long-term drainage performance
Even though gabions are naturally draining, poor water management can still undermine the structure.
Structural Layout and Wall Geometry
Custom gabion design includes decisions like:
- Wall height and length
- Stepped vs vertical configurations
- Wall batter (lean-back angle) for stability
- Tiered walls for high retaining loads
- Foundation depth and preparation requirements
The goal is always stability, safety, and durability.
Correct Rock Fill Specification
The rock inside a gabion structure is not only for appearance—it’s the main weight and stability component.
A design should guide:
- Suitable rock type (hard, durable stone)
- Rock size range for the mesh opening
- Packing method for structural strength
- Neat facing rock placement (if required)
Incorrect rock selection can cause movement, settlement, and shortened lifespan.
Custom Gabion Structure Design vs Standard Gabion Supply
Many suppliers can sell gabion baskets. But custom design is about ensuring the entire system works correctly for your site.
Standard Gabion Supply Usually Covers:
- Basket delivery
- Generic basket sizes
- Basic installation guidance (sometimes)
Custom Gabion Structure Design Covers:
- Site-specific structure layout
- Erosion and drainage planning
- Correct retaining strategy
- Risk reduction (undermining, bulging, scour)
- Long-term performance planning
In short: custom design protects your investment.
Common Mistakes Custom Gabion Design Helps Prevent
Custom gabion design is often the difference between a wall that lasts 20+ years and one that fails after a few storms.
Poor Foundation Preparation
A gabion wall placed on unstable or uneven ground can settle and deform.
Ignoring Stormwater and Runoff Patterns
Many failures happen because water flow was not managed—not because the wall was weak.
Wrong Wall Height or Basket Layout
Walls that retain too much soil without correct design can bulge or collapse.
Incorrect Rock Size or Poor Packing
Rock that is too small can shift or fall out, reducing stability.
No Toe Protection in Scour Zones
In erosion areas and near water, toe protection is critical to prevent undermining.
Environmental and Regulatory Considerations in South Africa (Important)
Because your company operates in South Africa, it’s important to consider that gabion structures—especially those near rivers, wetlands, or drainage lines—may trigger environmental or water-related requirements.
When Compliance May Apply
Additional compliance considerations may be needed when gabions are installed:
- In or near a watercourse (stream, river, wetland)
- On environmentally sensitive land
- Where bank shaping or channel work occurs
- Where stormwater discharge affects natural systems
Why This Matters
Environmental planning helps avoid:
- project delays
- enforcement action
- costly changes mid-construction
- long-term environmental damage
Note: Requirements depend on the site and scope. It’s best to confirm early with the right professionals and authorities.
Benefits of Custom Gabion Structure Design
Custom gabion designs offer major advantages for property owners, developers, and contractors.
Stronger Long-Term Stability
A custom design ensures the gabion structure is built to resist real site forces.
Better Drainage Performance
Water pressure and runoff are planned for—not left to chance.
Reduced Repair and Maintenance Costs
The right solution prevents repeat erosion and recurring damage.
Improved Safety
Retaining walls must be safe—especially near buildings, driveways, and public areas.
A Better Finish and Cleaner Installation
Custom design improves alignment, wall shape, and aesthetic outcome when appearance matters.
Why Choose Civil Structural & Eco-Engineering?
At Civil Structural & Eco-Engineering, we focus on practical, durable solutions that match site conditions and project goals.
When you choose us for custom gabion structure design, you get:
- Professional site-based planning
- Clear guidance for correct installation
- Better long-term performance and stability
- Solutions suited to South African conditions
- Support for retaining walls, erosion control, and riverbank protection
Custom Gabion Structure Design Starts With Getting the Site Right
Gabions are one of the most effective tools in retaining and erosion control—but they perform best when they’re designed specifically for your site.
With custom gabion structure design, you reduce risk, improve durability, and ensure the structure does its job properly for years to come.
If you need a reliable gabion solution that’s built around your site conditions, Civil Structural & Eco-Engineering is ready to assist.
